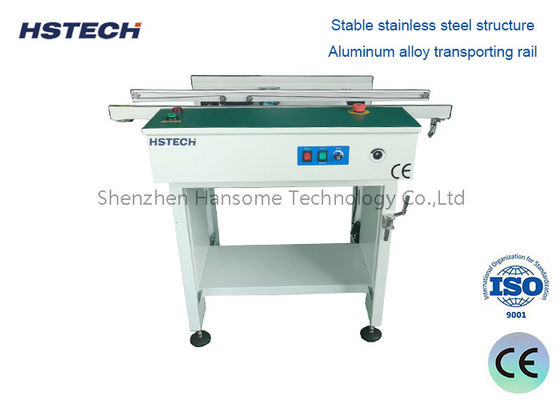

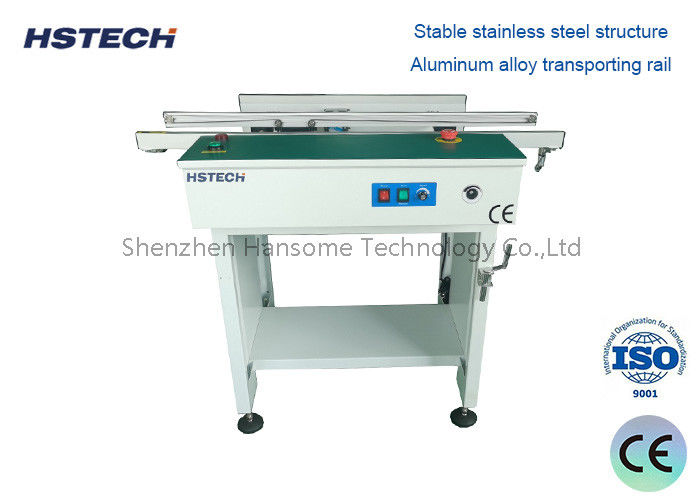

Flexible PCB Conveyor SMT PCB Handling Equipment For Production Line Connection Station

The SMT Conveyor is a foundational board handling solution engineered to ensure seamless, high-speed PCB transfer across modern electronics assembly lines. Serving as the critical connective tissue between Solder Paste Printers, Pick-and-Place Machines, Reflow Ovens, and Automated Optical Inspection (AOI) stations, this conveyor guarantees uninterrupted material flow and precise board positioning. Built with a robust heavy-duty frame and integrated with standard SMEMA communication protocols, it synchronizes flawlessly with upstream and downstream equipment to eliminate bottlenecks, reduce manual handling, and maximize overall line throughput and operational efficiency.

• programmable logic controller
• Hand crank width adjustment
• Standard with inspection sensor and button
• Use stainless steel screw,smooth and parallel width adjustment
• Left to right travel,or right to left,front rail fiexd
• ESD working table
• Height adjustable and stable feet cup location

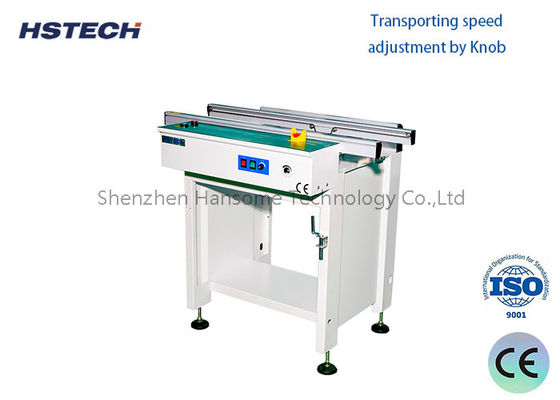

• Speed control
• SMEMA compatible

This high precision SMT conveyor is widely applied in full-automatic electronic assembly and PCB manufacturing industries, covering multiple professional production scenarios:

• SMT Full Automatic Production Line: Used for seamless connection between printing, mounting, reflow soldering and post-inspection processes to realize continuous unmanned production.
• PCB Board Transfer & Docking: Serve as connection station equipment for SMT production lines, realizing stable transmission and buffer storage of various circuit boards.
• Multi-Line Merging & Shunting Production: Support multi-group production line layout matching, flexibly complete line merging, shunting and cross-station transmission to improve production line utilization.
• Consumer Electronics Manufacturing: Suitable for PCB assembly and production of mobile devices, home appliances, communication equipment and daily electronic products.
• High-Precision Electronic Production: Adapt to automotive electronics, medical electronics, industrial control circuit and other high-standard PCB manufacturing scenarios, meeting strict precision and cleanliness requirements.
• Production Line Upgrade & Renovation: Ideal flexible supporting equipment for new line construction and old SMT production line transformation and efficiency improvement.

• Engineered for Global Standards: CE certified and manufactured with premium imported components to meet the rigorous quality, safety, and performance demands of international electronics manufacturing.
• Customizable Solutions: We offer flexible configurations for conveyor length, width capacity, transfer height, and control logic to perfectly match your unique factory layout and production requirements.
• User-Friendly Operation: The intuitive touchscreen interface and automated width adjustment features drastically reduce operator training time and minimize changeover delays during product transitions.
• Comprehensive Technical Support: Beyond standalone equipment, we provide complete SMT line integration consulting, fast delivery, detailed operation manuals, and responsive after-sales service to ensure your production runs at peak efficiency.
• Proven Reliability: Designed with a heavy-bottom frame and precision components to prevent shifting and reduce mechanical wear, ensuring stable, high-speed operation and long-term durability in demanding production environments.

Optimize your SMT production line with our high-performance, SMEMA-compatible SMT Conveyor. Whether you need to connect new equipment, upgrade existing lines, or design a flexible manufacturing layout, our precision transfer system is the reliable foundation for your automated assembly process.

Contact us today for a free consultation, customized layout proposal, or to request a product demonstration video!
