Knife-Type Automated PCB V-Cut Blade Miving PCB Separator for Circuit Board Depaneling

브랜드 이름:	HSTECH
모델 번호:	HS-V350
모크:	1 PC
가격:	negotiable
지불 조건:	티/티
공급 능력:	50 PC/월

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

인증:

CE,ISO

제품명:

블레이드 미빙 PCB 분리기

다른 이름:

V-컷 PCB 절단기 기계

상태:

새로운

전원공급장치:

단일-위상

절단 속도:

300mm/s

보증:

1년

포장 세부 사항:

멍청한

공급 능력:

50 PC/월

강조하다:

knife-type PCB depaneling separator

automated V-cut blade PCB separator

PCB circuit board depaneling equipment

제품 설명

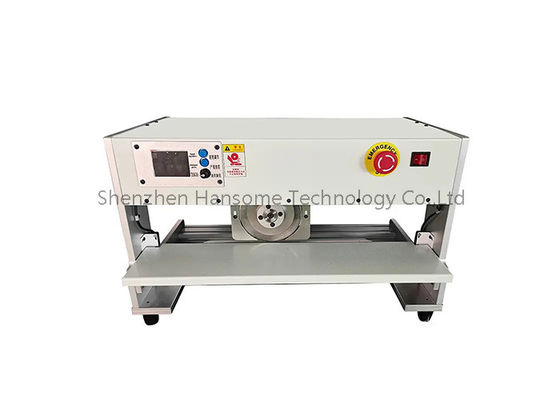

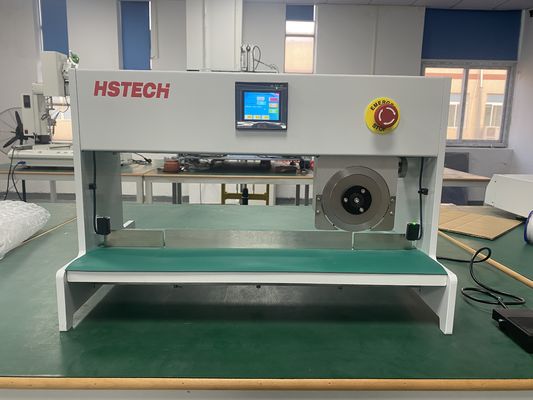

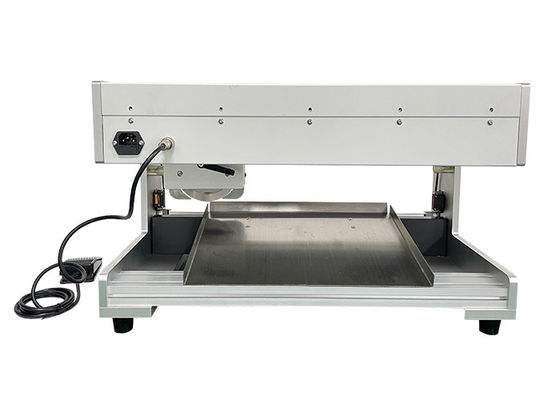

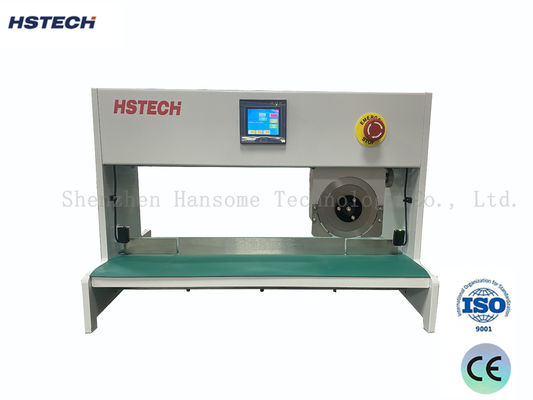

Knife-Type Automated PCB V-Cut Blade Moving PCB Separator

The HS-203 Knife-Type Automated PCB V-Cut Separator is designed for efficient circuit board depaneling. This blade-moving PCB separator features an upper circular and lower linear blade design that places the V-groove onto the linear blade before cutting. The upper circular blade moves horizontally to complete separation with minimal force stress, protecting board components from damage.

Key Features & Benefits

High-Precision Separation: Blade movement technology ensures accurate separation along V-Cut gaps for superior cutting quality
Enhanced Efficiency: Optimized for mass production with rapid separation capabilities
User-Friendly Operation: Intuitive design suitable for operators of all technical levels
Precise Control: Adjustable cutting depth and pressure for different PCB types
Safety Assurance: Comprehensive protection measures for operator safety
Stress Relief Design: Circular knife walking cutting prevents solder joint cracking and component breakage
Durable Construction: Upper and lower knives made of imported high-speed steel with extended service life

Technical Specifications

Specification	Details
Power Supply	Single-phase AC220V 50-60HZ
Weight	60KG
Machine Dimensions	770mm (length) × 370mm (width) × 420mm (height)
Cutting Speed	300mm/s
Maximum Knife Wheel Stroke	350mm
Knife Wheel Fine Adjustment	0-3mm
Lower Knife Adjustment Range	0-2mm
PCB Processing Capabilities	Maximum cutting width: 150mm; Maximum cutting length: 350mm; Cuttable thickness: 0.6-3.2mm; V-groove thickness: 0.25-2.0mm

Model Comparison

Specification	HS-V350	HS-V600
Power Supply	Single-phase, AC220V 50-60Hz	Single-phase, AC220V 50-60Hz
Cutting Speed	0-300mm/s	0-300mm/s
Blade Moving Distance	350mm	600mm
PCB Cutting Length	350mm	600mm
PCB Cutting Width	150mm	150mm
Machine Weight	45KG	65KG
Machine Dimensions	600×360×370mm (L×W×H)	850×360×370mm (L×W×H)

Safety Feature: Equipped with infrared radiation switch protection. The machine automatically stops when hands or foreign objects enter the knife movement area, ensuring safe operation.

Industrial Applications

Electronic Product Manufacturing

Used for splitting multi-layer PCBs in mobile phones, tablets, and electronic devices with precise size and position control to improve product qualification rates.

Industrial Automation

Applied to circuit board splitting for industrial control equipment and instruments, enhancing production line automation and reducing cycle times.

Consumer Electronics

Widely used for PCB splitting in laptops, digital cameras, and other consumer electronics to ensure quality and reduce rework rates.

Medical Electronics

Suitable for high-precision circuit board splitting in medical equipment and diagnostic instruments without causing circuit damage.

Aerospace

Applied to PCB splitting with extreme reliability requirements in avionics and aerospace equipment, ensuring consistency and stability.
