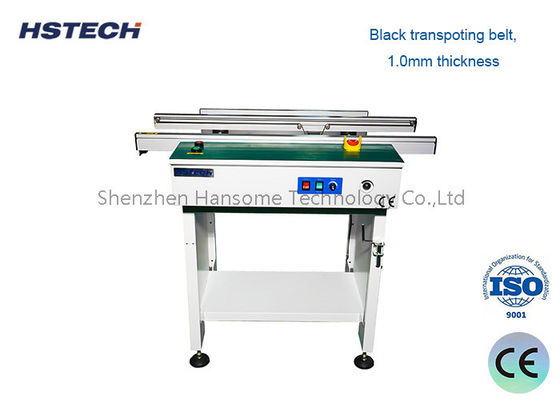

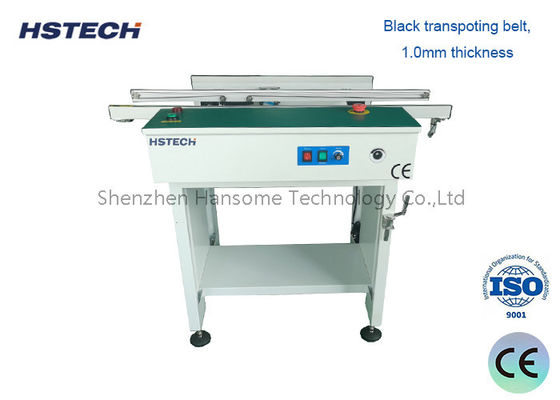

SMT PCB Conveyor With ESD Working Table Manual Width Adjust PCB Transport Machine

브랜드 이름:	HSTECH
모델 번호:	HS-C600
모크:	1개
가격:	negotiable
지불 조건:	티/티
공급 능력:	100 PC / 달

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

인증:

CE,ISO

제품명:

PCB 컨베이어

PCB 폭:

50*50~530*460mm

운송 높이:

910±30mm

폭 조정:

손 크랭크

신호:

SMEMA

보증:

1년

포장 세부 사항:

멍청한

공급 능력:

100 PC / 달

강조하다:

ESD PCB conveyor machine

manual width adjust PCB transport

SMT PCB handling equipment

제품 설명

SMT PCB Conveyor With ESD Working Table Manual Width Adjust PCB Transport Machine

This height-adjustable PCB conveyor with ESD working table is a reliable solution for SMT production lines, featuring adjustable width, speed control, and SMEMA compatibility to enhance PCB handling efficiency.

Product Overview

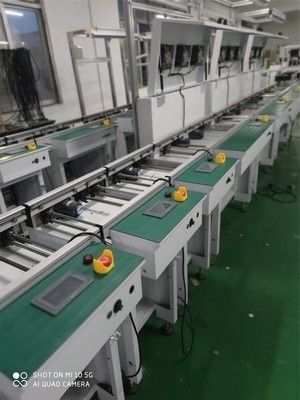

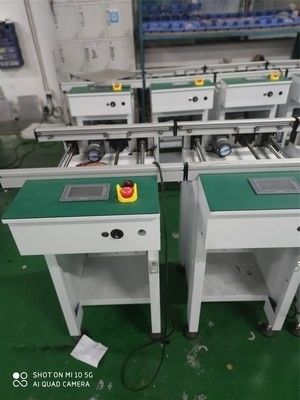

The PCB Conveyor is an essential piece of equipment in SMT production lines, designed to transport PCBs smoothly and efficiently between different machines including printers, pick-and-place machines, AOI systems, and reflow ovens. Built with a stable structure and user-friendly design, this conveyor ensures safe, precise, and continuous board transfer, helping manufacturers improve productivity and reduce manual handling.

Key Features

PLC Intelligent Control

Equipped with a Programmable Logic Controller (PLC) for accurate and stable operation, ensuring consistent PCB transfer across your production line.

Adjustable Width Design

Manual hand crank width adjustment
Smooth and parallel adjustment via stainless steel screw system
Suitable for different PCB sizes

Bi-Directional Transfer

Supports left to right (L -> R) and right to left (R -> L) transfer directions, providing flexible installation for various SMT line layouts.

ESD Safe Working Surface

Designed with an ESD-safe conveyor belt to protect sensitive electronic components from static damage.

Speed Control Function

Adjustable conveyor speed allows synchronization with upstream and downstream equipment, ensuring smooth workflow.

Stable and Durable Structure

Adjustable height with stable foot cups
Strong frame for long-term industrial use
Compact and space-saving design

SMEMA Compatible

Fully supports SMEMA communication protocol, enabling seamless integration into automated SMT production lines.

Technical Specifications

Function	Description
Transport height	910±30mm
Transportation direction	L~R, or R~L
Operation	Front operation
Track fixed side	Front side, or customized
PCB width	5050~530460mm
Conveyor length options	0.5m/0.6m/1.0m/1.5m or customization
Speed adjust method	Knob
Width adjustment	Hand crank (optional auto adjust)
Power supply	AC110/220V, 50/60Hz, ±10%
Options	Light, Fan, Inspection function, Cover, Automatic width adjustment, dual rail, etc.
Signal	SMEMA

Model Specifications

Model	HS-C600	HS-C1000	HS-C1500
PCB width	5050~530390mm	5050~530390mm	5050~530390mm
Machine dimension	730600940mm	1130600940mm	1630600940mm
Weight	60kg	80kg	100kg
