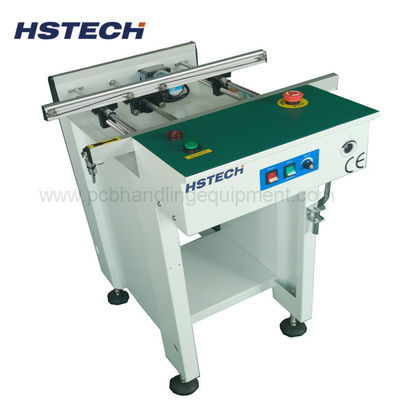

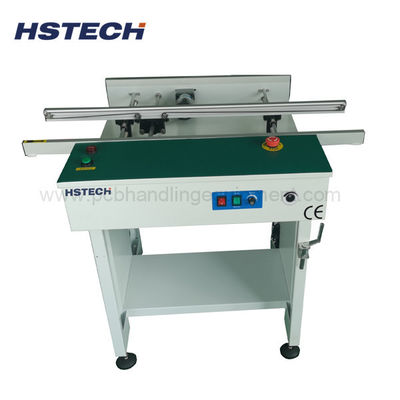

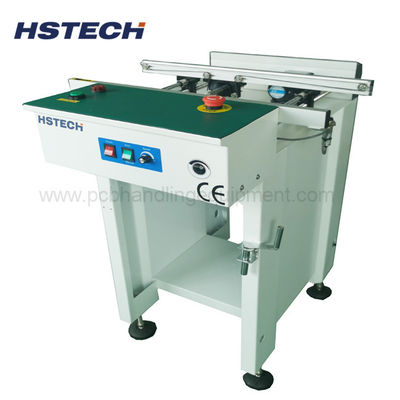

Flexible SMT Linking Conveyor PCB Handling Equipment for SMT Line Connection Station

The SMT Conveyor is a professional and essential PCB handling equipment designed specifically for automated SMT production lines. As a core connecting device in surface mount technology processes, this SMT conveyor realizes automatic PCB board transferring, seamless machine docking, and continuous production operation between different SMT equipment, including solder paste printers, SMT pick and place machines, reflow ovens, AOI inspection machines, and SPI testing machines.

Our flexible SMT PCB Conveyor adopts modular and adjustable structural design, which supports automatic transmission of various sizes of circuit boards. It effectively solves the problems of discontinuous production, manual board transfer, and low line coordination efficiency in traditional SMT workshops. This high-precision SMT conveyor features stable operation, anti-static performance, and strong compatibility, fully adapting to high-speed and high-precision automated SMT assembly production requirements.

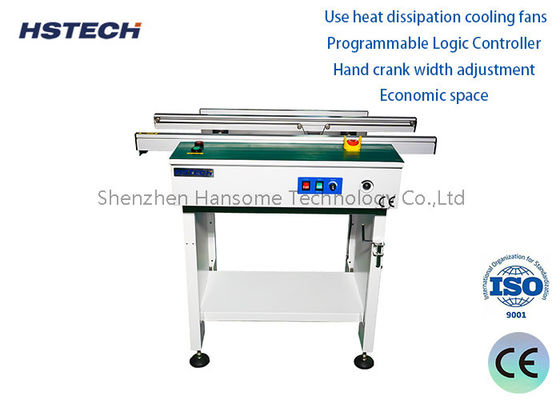

• programmable logic controller
• Hand crank width adjustment
• Standard with inspection sensor and button
• Use stainless steel screw,smooth and parallel width adjustment
• Left to right travel,or right to left,front rail fiexd
• ESD working table
• Height adjustable and stable feet cup location
• Speed control
• SMEMA compatible

• SMT Line Buffering: Acting as a temporary storage buffer between high-speed mounters and reflow ovens to balance production takt time.
• Automated Inspection Station: Integrating with AOI or SPI machines to allow operators to inspect and sort defective PCBs without stopping the main line.
• Production Line Merging & Splitting: Utilizing parallel transfer (shuttle) systems to route PCBs from single lines to dual-track ovens or vice versa.
• Cooling & Curing Conveyors: Providing extended transport paths for post-reflow cooling or adhesive curing processes.
• Automated Loading/Unloading: Connecting with automatic PCB loaders and un-loaders for fully unmanned production lines.

1. Robust Industrial Design: Built with reinforced structural frames and premium components (e.g., imported sensors, precision ball screws) to guarantee 24/7 stable operation and low maintenance costs.
2. Seamless Integration: Strict adherence to SMEMA standards ensures plug-and-play compatibility with all major global SMT equipment brands.
3. Space & Efficiency Optimization: Our modular designs, including compact L-type and parallel shuttle models, maximize your factory floor space while boosting throughput.
4. Tailored Customization: We offer bespoke engineering services to match your exact PCB dimensions, factory layout, and automation requirements.
5. Global Quality Standards: Manufactured under strict quality control protocols, ensuring reliable performance and durability for international manufacturing environments.

Don't let inefficient material handling slow down your production. Contact us today for a free consultation, custom CAD layout, or competitive quotation. Let our SMT Conveyor System be the reliable backbone of your automated electronics manufacturing.
