High-Precision Knife-type Board Separator PCB Depaneling Machine Or V-Cut Blade Separation

브랜드 이름:	HSTECH
모델 번호:	HS-203
모크:	1개
가격:	negotiable
지불 조건:	티/티
공급 능력:	100 PC / 달

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

인증:

CE,ISO

제품명:

블레이드 미빙 PCB 분리기

다른 이름:

V-컷 PCB 절단기 기계

품질:

내구성이 뛰어나고 순위가 높음

전원공급장치:

단상 AC220V, 50-60Hz

드라이브 시스템:

스테퍼 모터(자동 잠금)

보증:

1년

포장 세부 사항:

멍청한

공급 능력:

100 PC / 달

강조하다:

High-Precision PCB Depaneling Machine

Knife-type Board Separator PCB

V-Cut Blade Separation Machine

제품 설명

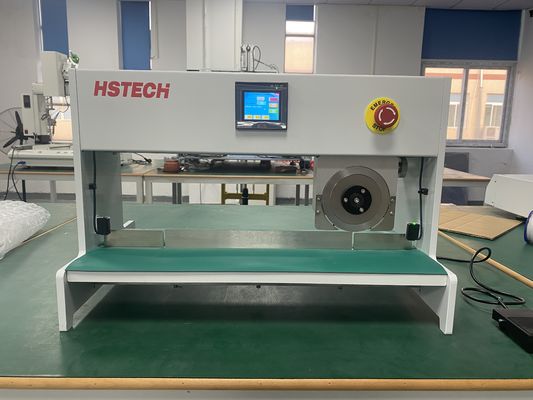

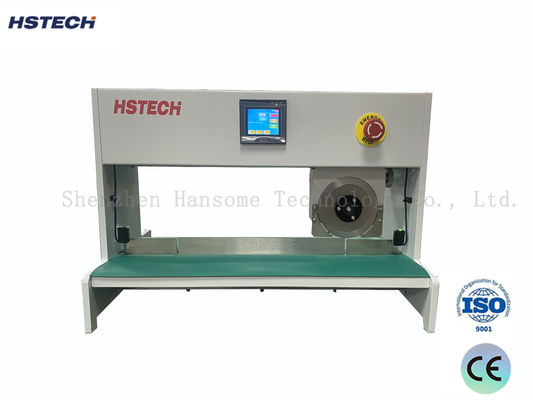

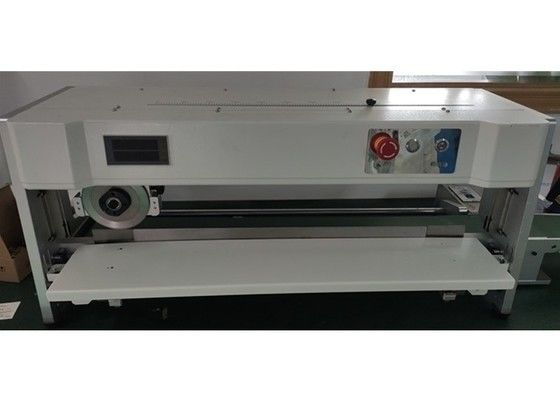

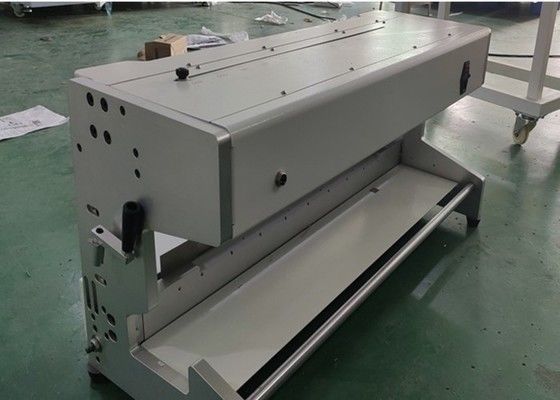

High-Precision Knife-type Board Separator PCB Depaneling Machine

This PCB Board Separator is a high-precision circuit board cutting machine designed specifically for SMT production lines. It adopts an upper and lower knife cutting mechanism to safely and efficiently separate V-groove connected PCBs. It completely eliminates circuit damage and component breakage caused by manual depaneling, widely used in electronic manufacturing, SMT assembly, and PCB assembly industries.

Technical Specifications

Power Supply	Single-phase AC220V, 50-60Hz
Weight	60KG
Machine Size	770mm (L) × 370mm (W) × 420mm (H)
Cutting Speed	300mm/s
Max Stroke of Knife Wheel	350mm
Fine Adjustment of Knife Wheel	0-3mm
Lower Knife Adjustment	0-2mm
Rear Baffle Width	150mm
Max PCB Cutting Width	150mm
Max PCB Cutting Length	350mm
Applicable PCB Thickness	0.6-3.2mm
V-Groove Spacing	0.25-2.0mm
Safety Protection	Infrared safety switch
Drive System	Stepper Motor (self-locking)
Knife Material	Imported High-Speed Steel (re-grindable ~2 times)

Key Features

High Precision Cutting for Maximum Yield: Stepper motor with power-on self-locking function delivers precise cutting and positioning, eliminating travel deviation and ensuring smooth, burr-free cuts.
Low-Stress Cutting to Protect Components: Walking circular knife design reduces mechanical stress, preventing solder joint cracking and electronic component breakage.
Versatile Adjustment for Various PCBs: Adjustable knife wheel and lower knife accommodate different PCB thicknesses (0.6-3.2mm) and V-groove spacings (0.25-2.0mm).
Safety-Protected Operation: Infrared safety switch automatically stops the machine when foreign objects enter the cutting area.
Durable Knives with Low Maintenance Cost: Imported high-speed steel knives can be re-ground approximately 2 times, extending service life.
Simple Operation for High Efficiency: Foot switch control enables straightforward operation with consistent quality results.

Applications

PCB depaneling in SMT production lines
Mass PCB cutting in electronic manufacturing factories
Depaneling of precision and component-mounted PCBs
PCB assembly in consumer electronics, industrial control, and automotive electronics industries
Upgrading depaneling processes to reduce rework and scrap rates

Frequently Asked Questions

What thickness of PCB can this machine cut?

It is suitable for PCBs with a thickness of 0.6-3.2mm and V-groove spacings from 0.25-2.0mm, offering strong compatibility.

Will the cutting damage components on the PCB?

The walking circular knife cutting produces very low mechanical stress. Combined with precise travel control, it does not damage solder joints or surrounding components, making it ideal for depaneling precision PCBs.

Can the knives be replaced or re-ground?

The upper and lower knives are made of imported high-speed steel. Blunt knives can be re-ground approximately 2 times, reducing long-term operating costs.

What safety features does the machine have?

It is equipped with an infrared safety switch that automatically stops the machine when foreign objects enter the knife movement area, preventing accidents.
